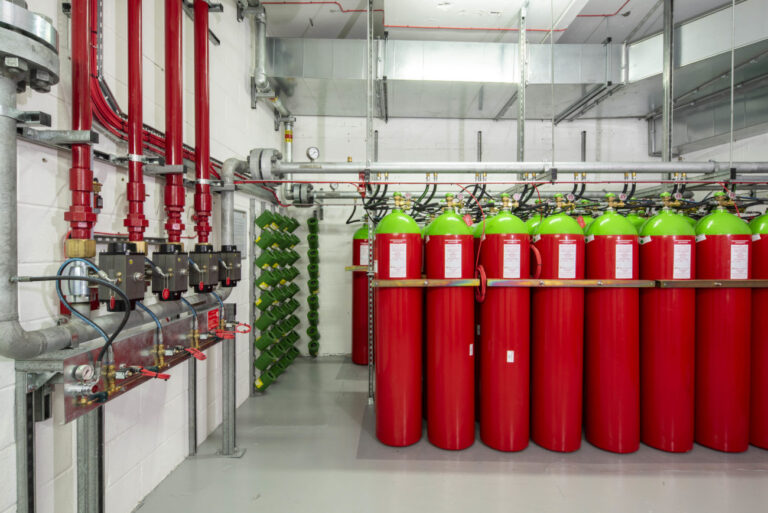

Inert Fire Suppression System

A Gas Based Automatic Fire Suppression System
reduces the oxygen levels and controls the fire.

Request a Quick Quote

How Inert Fire Suppression System Works

With the big push toward “Green”, Fire Projects recommend inert gasses which have become a good choice as they are the most green of all of the Clean Agents. Inert gasses are defined as using one or more of the gasses Nitrogen, argon, or helium. CO2 is also found in one of the inert gas blends.

Inert gasses work by removing the oxygen in the hazard to a point where it will not support a fire, but still high enough to support life. Design considerations when using inert gasses are pressure venting and volume. It is critical to design the system to achieve the correct concentration, and not remove too much oxygen in the room. Plus, venting of inert gasses is important as it displaces the air volume in the hazard area. Fire Projects can assist in determining which agent is best suited to protect the hazard area (includes detection and control for the system).

The air we breathe has approximately 21% of Oxygen. Oxygen is the key factor in sustaining a fire and the key factor in keep us alive too. By removing the oxygen, we will certainly extinguish a fire, but that comes with obvious problems. How do we sustain life at the same time? Fires need more than 15% Oxygen to combust. Anything below this level of oxygen will not be enough for a fire to sustain combustion. Luckily, we only need 12% plus of oxygen to survive and this is where the answer lies. To extinguish a fire and sustain life, we need to reduce oxygen from 21% (assuming were at sea level) to below 15%, but not less than 12%. This will extinguish a fire and sustain life at the same time.

Inert Gas Fire Suppression systems are commonly found with the following blends and names:-

1) Inergen fire suppression – IG541:

Inergen fire suppression agent is made up of 50% Argon, 42% Nitrogen and 8% Co2. The Co2 in this blend helps us absorbe oxygen into our blood cells.  By doing this it decreases the risk of the symptoms described above. Co2 is also known to increase our heart beat rate and also induce hyper ventilation. This gas clearly suggests an advantage over the other inert gas fire suppression systems, but there is a down side to this.

If the protected space is filled with toxic bi-products of combustion, the hyper ventilating will introduce more toxins and increase the risk of other side effects.

Argon/nitrogen fire suppression – Commonly known as IG55 fire suppression:

IG55 fire suppression is a balanced mix of 50% Argon & 50% Nitrogen. The fire suppression agent provides good buoyancy, which keeps it in the protected space for longer, thus optimizing the suppression period.

Contact us for new implementation of Inert fire suppression system is most effective way for small to medium size datacenter, UPS room, medical facilities, and telecommunication facilities.

We support our clients from Designing up to Commissioning up to AMC. We also provide AMC–Annual Maintenance Contracts for all types of Fire & security Systems. If you required new installation or AMC of fire suppression system, contact us today!
